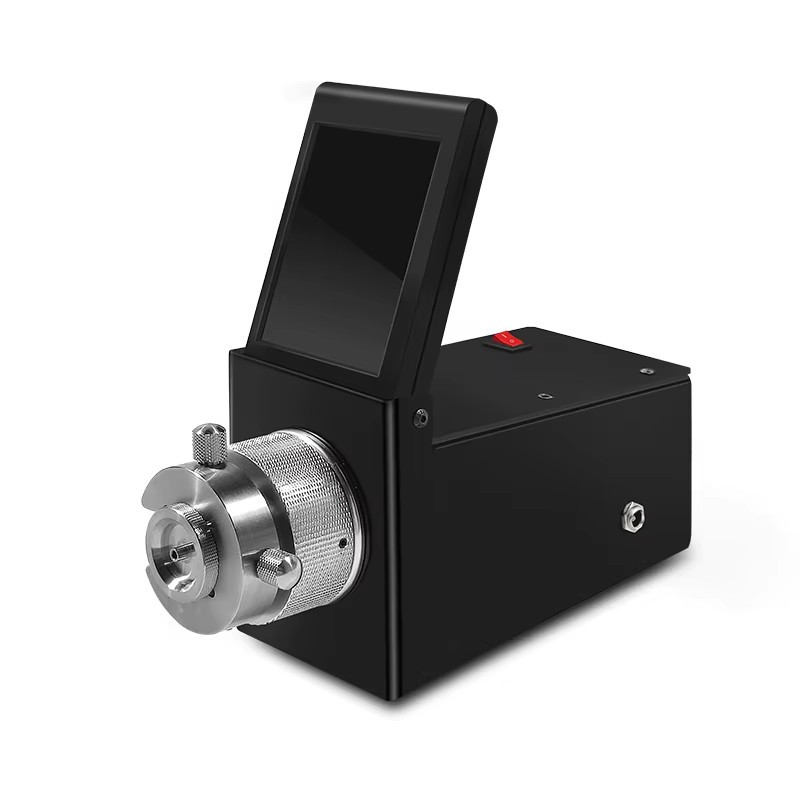

400X fiber optic inspection scope - mini handheld rechargeable microscope for fiber optic inspection with a foldable 3.5 lcd screen Portable, Lightweight, and Ready for the Field

400X Fiber Optic Inspection Scope: Compact, Powerful, and Built for the Field

When it comes to ensuring the integrity and performance of fiber optic connections, precision and clarity are everything. The 400X Fiber Optic Inspection Scope is engineered for professionals who demand fast, accurate, and hassle-free inspection—anywhere, anytime.

Product name：Mini Video optical fiber microscope

Application：optical fiber endface testing

Size：19.5cm*8cm*8.5cm

Power Supply：2000mA rechargeable battery

Stand by time: 8H

Weight：0.75kg

Optical Zoom：400 times

Image displayed：Foldable LCD video monitor(3.5 inch)

Interface：2.5mm PC connector interfaces

Fitness：

1.25mm connector interfaces(apply for LC,MU connector)

Fiber connector

2.5mm APC connector interfaces

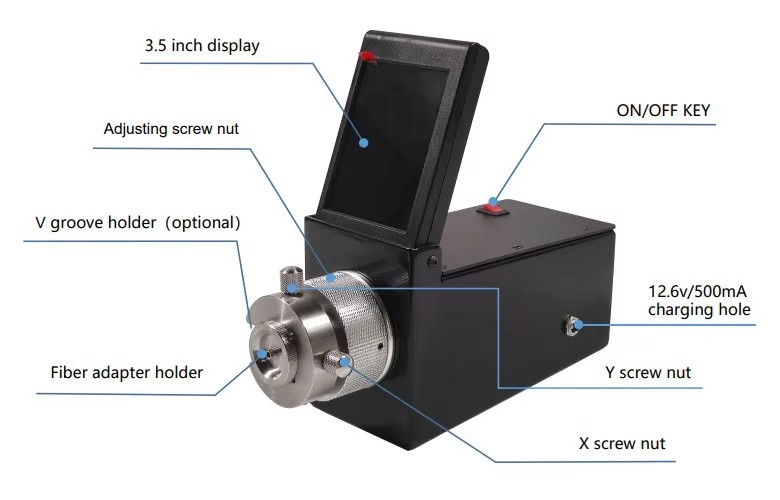

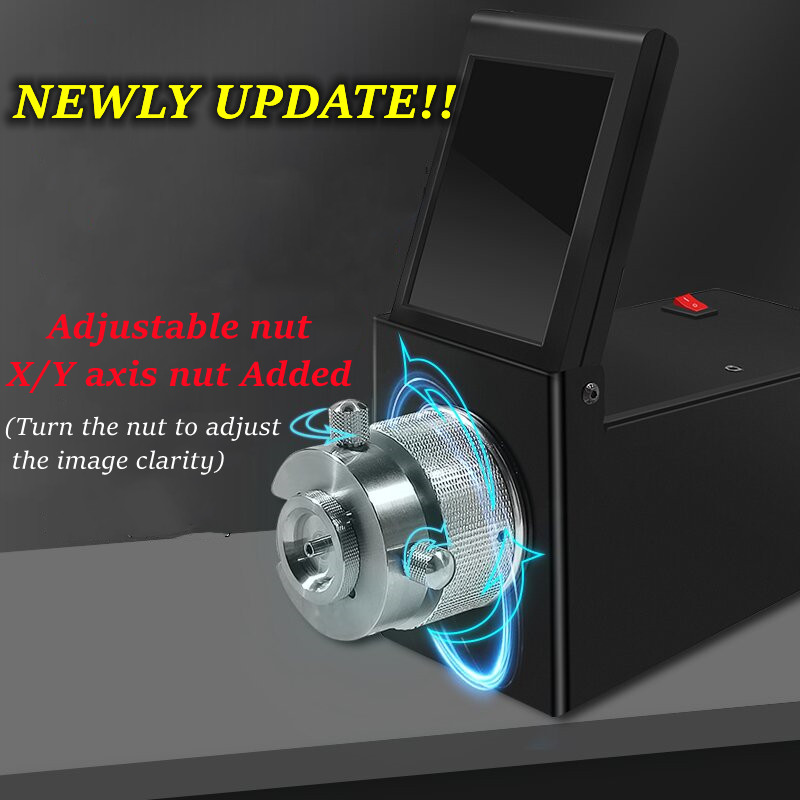

This video fiber microscope successfully combines the key technology of the handheld fiber microscope with the newest portable LCD display device, It has the advantages of convenient carrying, simple operation and clear image. [X/Y axis nut adjustment function] enables the optical fiber image to be easily adjusted to the center position on the display，V groove holder is optional, which can clearly and intuitively see the fiber endface section.

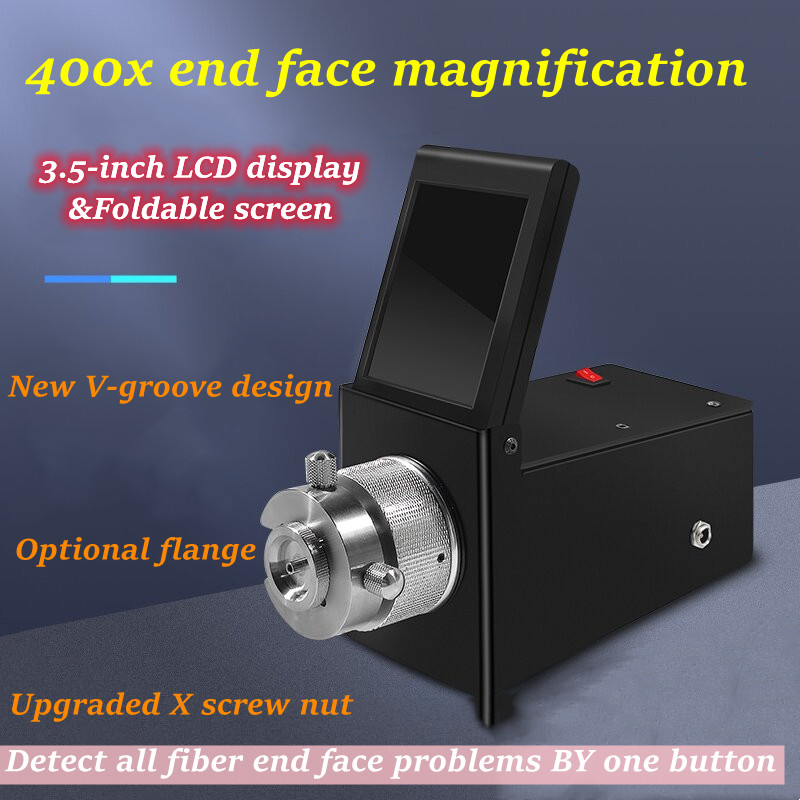

Compact Powerhouse with 400X Optical Zoom

Don’t be fooled by its size—this mini handle microscope delivers 400X optical zoom, allowing you to clearly examine fiber endfaces for dust, scratches, and damage. Whether you're inspecting LC, MU, or APC connectors, you'll get razor-sharp detail every time.

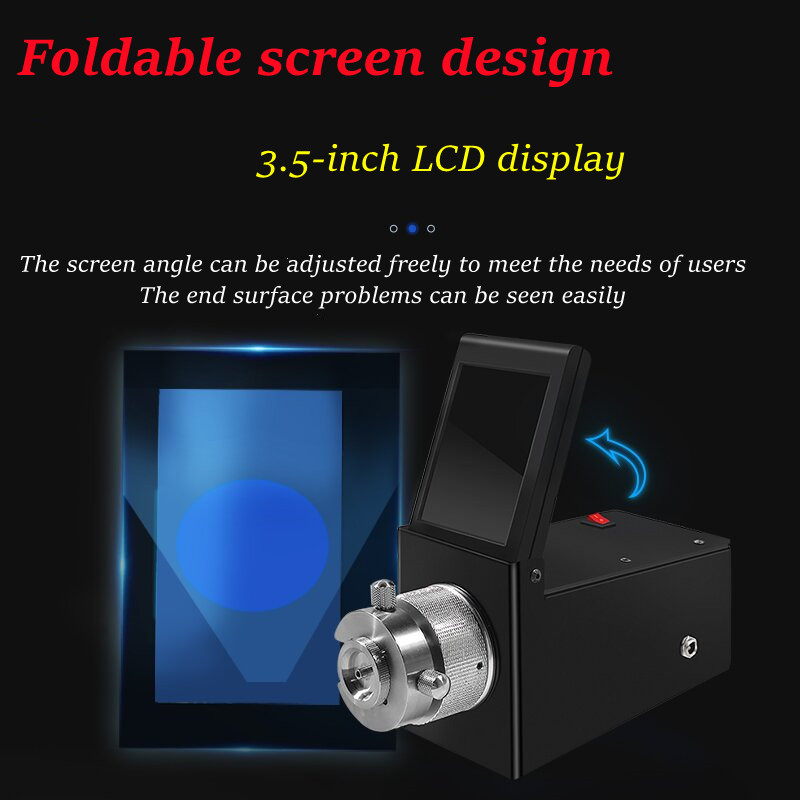

Foldable 3.5" LCD Display for Real-Time Clarity

Forget squinting through tiny eyepieces. The built-in foldable 3.5-inch LCD video monitor provides a vivid, real-time view of the fiber connector, making inspections faster and more comfortable. It's ideal for quick diagnostics and documentation in the field or lab.

Portable, Lightweight, and Ready for the Field

Weighing just 0.75 kg and measuring 19.5cm × 8cm × 8.5cm, this scope is purpose-built for on-the-go technicians. Its rugged design and compact footprint fit easily in your toolkit or field bag.

Rechargeable Battery for Extended Use

With a 2000mA rechargeable battery, you’ll get hours of continuous use without needing a power source. It’s the perfect companion for outdoor jobs or when working in tight spaces where outlets are hard to reach.

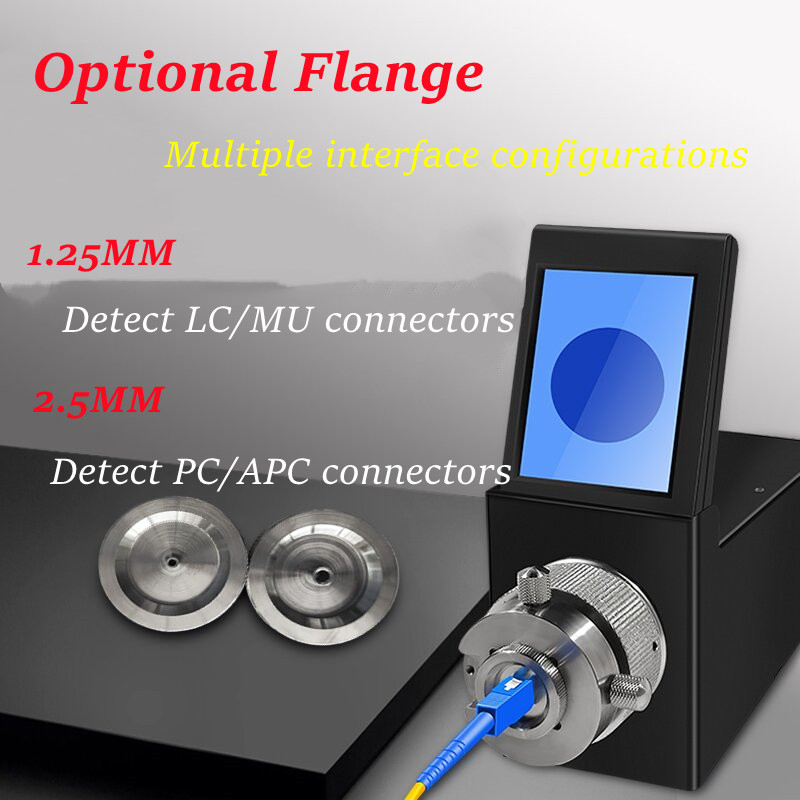

Versatile Connector Compatibility

• 2.5mm PC interface for common fiber types

• 1.25mm interface compatible with LC and MU connectors

• 2.5mm APC connector support included

Switching between connector types is quick and easy, enhancing your workflow across a wide range of projects.

Key Applications

• Fiber optic endface testing

• Routine network maintenance

• Field installation quality checks

• Lab-based fiber diagnostics

Whether you’re a field technician, installer, or fiber lab engineer, the 400X Fiber Optic Inspection Scope brings unmatched convenience, clarity, and confidence to your fiber inspections. Take it anywhere. See everything. Get it right the first time.

Order now to experience fiber inspection the smart way.
